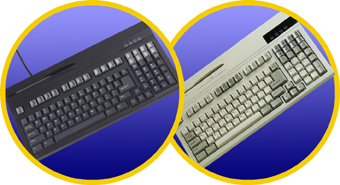

K2724 POS Keyboard
with MSR
 |
The K2724 POS Keyboard features a dual track
Magnetic Stripe Reader and built-in bar code scanner port, providing a
space-saving, one-piece solution suitable for point of sale, banking and
other commerce applications. It provides basic customization through 21
relegendable keys. Rugged construction and a spill resistant design
guarantee an extended life cycle.
|
Features:
- Compact, space saving design.
- 21 relegendable keys.
- Built-in dual track Magnetic Stripe Reader.
- Integrated bar code decoder accepts wand, laser scanner, CCD,
or RS232 input.
- Spill resistant construction.
- Num-Lock, Caps Lock, Scroll Lock, and Good Read LEDs.
 | |
|
| KP2724 Programmable POS Keyboard with MSR
| |
|
The KP2724 is the programmable version of the
K2724. Its features allow full customization of the unit. It supports 24
macros of up to 32 characters each. Every key can be remapped to change
the keyboard’s layout. Additionally, 90 keys can be relabeled to your
specific needs. This prevents mistakes, reduces the learning cycle and
speeds up operations.
|
Features:
- Compact, space saving design.
- 24 programmable keys, 32 characters per key.
- 90 relegendable keys.
- 101/102 remappable keys.
- Built-in dual track Magnetic Stripe Reader.
- Integrated bar code decoder accepts wand, laser scanner, CCD,
or RS232 input.
- Spill resistant construction.
- Num-Lock, Caps Lock, Scroll Lock, Good Read and Prog. Macro
LEDs.
| |
POS Keyboards
| Specifications |
| ORDERING INFORMATION |
| Keyboards |
| K2724 |
101 Key Beige POS Keyboard,
Track I & II MSR - U.S.
(AT/XT & PS/2) |
| K2724-B |
101 Key Black POS Keyboard,
Track I & II MSR - U.S.
(AT/XT & PS/2) |
| K2724P |
102 Key Beige POS Keyboard,
Track I & II MSR -
Portugese (AT/XT & PS/2) |
| K2724S |
102 Key Beige POS Keyboard,
Track I & II MSR -
Spanish (AT/XT & PS/2) |
| KP2724 |
101 Key Beige Programmable POS Keyboard,
Track I &
II MSR - U.S. (AT/XT & PS/2) |
| TECHNICAL |
| Model |
K2724 |
KP2724 |
| Layout
|
101/102
|
101/102
|
| Relegendable Keys |
21
|
90
|
| Programmable Keys |
Non-programmable |
24
|
| Remappable Keys |
N/A
|
101/102
|
| Integrated magnetic stripe reader |
Track I & II (ISO 7811) |
| Built-in
bar code decoder |
Decoder accepts wand, CCD, laser or serial input
|
| Compatibility |
IBM AT, PS/2 |
| Total
key travel |
4.0 + 0.3mm |
| Key type
|
Membrane switch, 20 million stroke life cycle |
| Electrical |
+5V DC + 5% @ 250 mA |
| Environmental |
Operating: 0° to 55°C |
|
Storage: -20° to 65°C |
|
Humidity: 10 to 95% RH (non-condensing) |
| Dimensions |
15.8 x 8.3 x 1.7" (400 x 210 x 43 mm) |
| Warranty
|
One year | |
